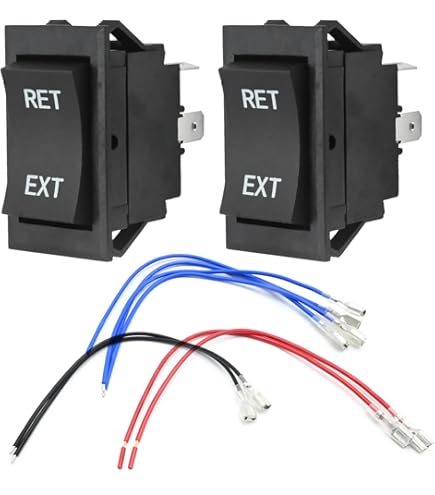

Got a trailer, RV, or any DC motor that needs its direction reversed? This rocker switch is your fix. It's specifically designed as a DPDT (Double Pole, Double Throw) reverse polarity switch. In plain English, that means it can flip the positive and negative wires going to a DC motor, making it spin forwards or backwards. The most common use? Operating the power tongue jack or landing gear on your RV or trailer – you flip the switch one way to lift, the other way to lower.
The switch itself is a latching type (stays in the position you flip it to) and is rated for 20 Amps at 12V DC (or 15A at 250V AC). That's plenty of power for most 12V motors. It has 6 pins on the back. The really handy part is that it comes with pre-connected jumper wires. These little metal bars connect the pins in the correct pattern for a standard polarity-reversing circuit, so you don't have to figure out the wiring diagram yourself. You just connect your power, ground, and the two motor leads to the right tabs.
The physical size is compact: about 45mm long, 20mm wide, and 45mm tall (1.77\ x 0.79\ x 1.77\). It's designed to mount in a rectangular panel cutout measuring 44mm x 24mm. The included jumper wires are about 21.2cm (8.3 inches) long, giving you some flexibility for connections.
Installation is pretty simple if you're handy with basic wiring. You're just replacing an existing switch or adding this one into your motor circuit. Make sure to disconnect your battery first! This is a reliable, no-frills component from weideer. If your old switch is fried or you're building a custom control panel for a winch, linear actuator, or other DC motor, this switch with its built-in jumper setup makes the job a lot easier.
